CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc

Product Categories
Sino linear actuator
Contact Now

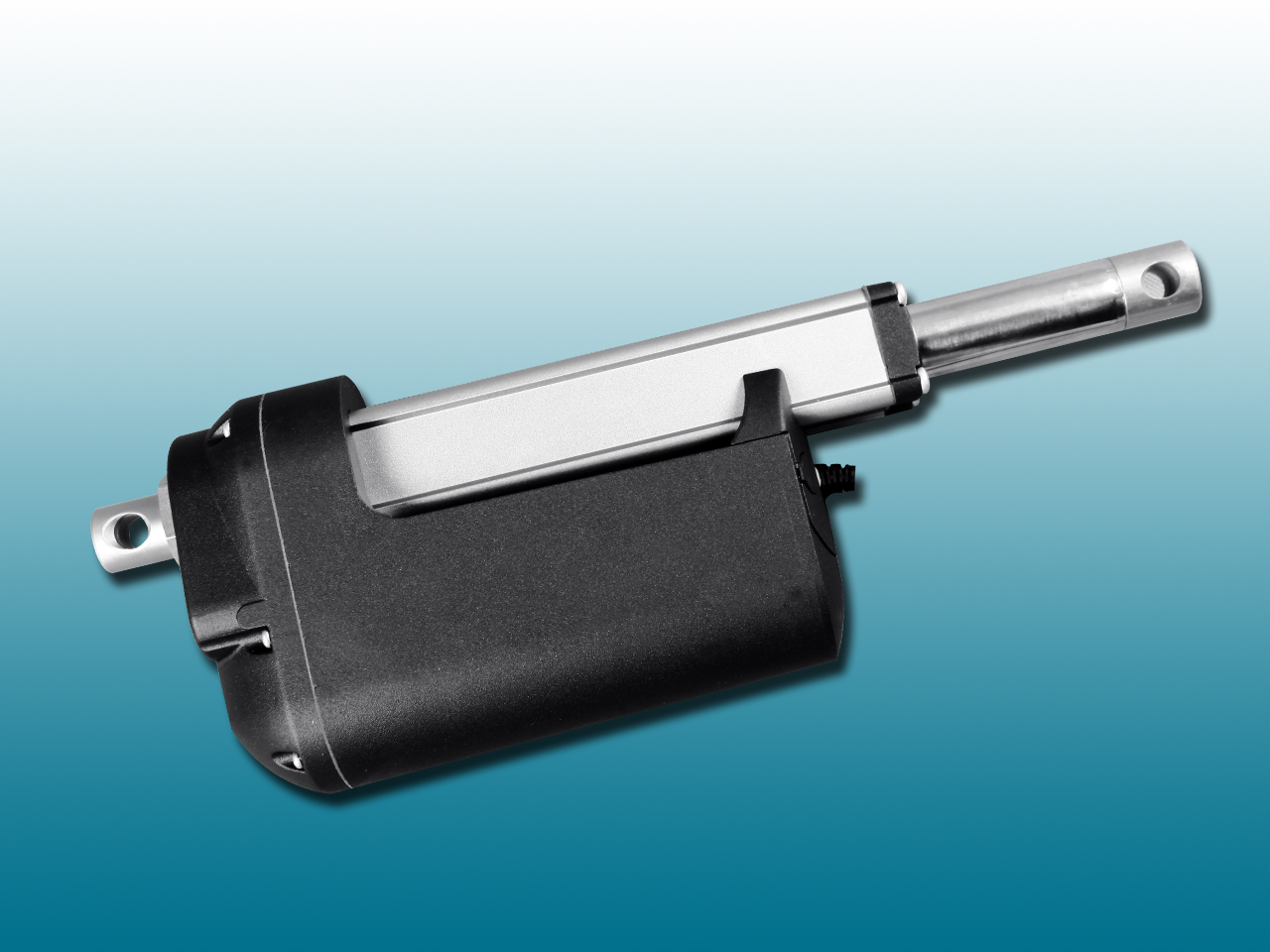

CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc

  • 1
  • 2

Place of Origin : China

Brand Name : OEM

Model Number : Industrial linear actuator

Certification : CE, ISO9001, SGS

Price : $170 linear actuator/pc

Packaging Details : 2pcs linear actuator per carton

Delivery Time : 10 work days after payment

Payment Terms : TT, Paypal, Western union

Supply Ability : 5000pcs linear actuator per month

MOQ : 10pcs linear actuator

Input voltage of linear actuator : 12v/24v/36v

Max load of linear actuator : 12000N(1200KG)

Duty cycle of linear actuator : 20%

Limit switch of linear actuator : Inner

IP class : IP66

Optional sets : potentometer, hall sensor

Installation size : s (stroke)+200mm

Stroke : 50-600mm

OEM : Yes

Electric : Yes

Contact Now

Specification of Linear Actuator

Brand

OEM

Model

Industrial linear actuator

Item name

Linear Actuator

Input

12V/24V/36V/48V DC

Load Capacity

12000N

Protection class

IP66

Speed

6.5mm-60mm/s

Stroke Length

Standard stroke sizes 100~600mm Other sizes for Custom orders

Limit Switch

Build-in

Duty cycle

20%

MOQ

10Unit/Units

Packaging Details

2 units/carton

Delivery Time

Sample with in 10 working days, bulk order 15~20 working days

Payment Terms

L/C,T/T,Paypal,Westen Union

Supply Ability

5000 Unit/Units per month

Certification

CE,ISO9001

Application

Industry,Agricultural machinery,Solar tracker,Car/truck

PS:

Potentiometer is options

CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc
Industrial linear actuator installation dimension for you reference

Stroke

50

100

200

250

300

350

A

300

300

400

450

500

600

B

350

400

600

700

800

950

Note: A:Retracted length(min installation dimension) B:Extended length(total length)
Stroke=B-A
Load & speed of linear actuator

Product mode Max load(N) Speed (mm/s)
Industrial linear actuator 12000 6.5
10000 13
7000 17
6500 20
5000 25
3200 38

Drawing of linear actuator
CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc

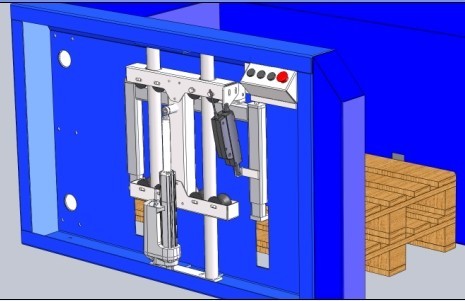

Application of linear actuator
CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdcCE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdcCE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc



Similar Strong Linear Actuator For Your Reference
CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc
CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc
Stroke info of strong linear actuator

Linear actuator with limit switch/potentiometer
50≤Stroke＜400, L=S+250mm
400≤Stroke＜600, L=S+300mm


Linear actuator without limit switch
50≤Stroke＜400, L=S+200mm
400≤Stroke＜600, L=S+250mm

Dimension info fo strong linear actuator
Linear actuator with limit switch/potentiometer

CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc

Linear actuator without limit switch

CE labeled linear actuator with manual hand crank, 12v dc motor, IP66, 2000lbs push pull load linear drive 12vdc
Q & A on Linear Actuator
Q:How to select stroke length and fitting dimension?
A:According to the requirements of install location and stroke range, select the most appropriate fitting dimension and stroke length.

Q:What is Duty Cycle? Does it have any relation with linear actuator?
Duty Cycle = continuous use time/ (continuous use time + non use time)
The use life of linear actuators will be reduced when the Duty Cycle is more than Provision

Q: Can you use linear actuator when it is over load?
A: No. Linear actuators won’t move or will be easily broken.

Q:Can Hongba offer the linear actuators when I need the longer stroke length than those showed on linear actuator category?
A:Yes. However, it should be considered linear actuators’ load and strength

Q:Can I adjust the linear actuators’ stroke length at will?
A:No. Please contact our technical department if it is necessary.
